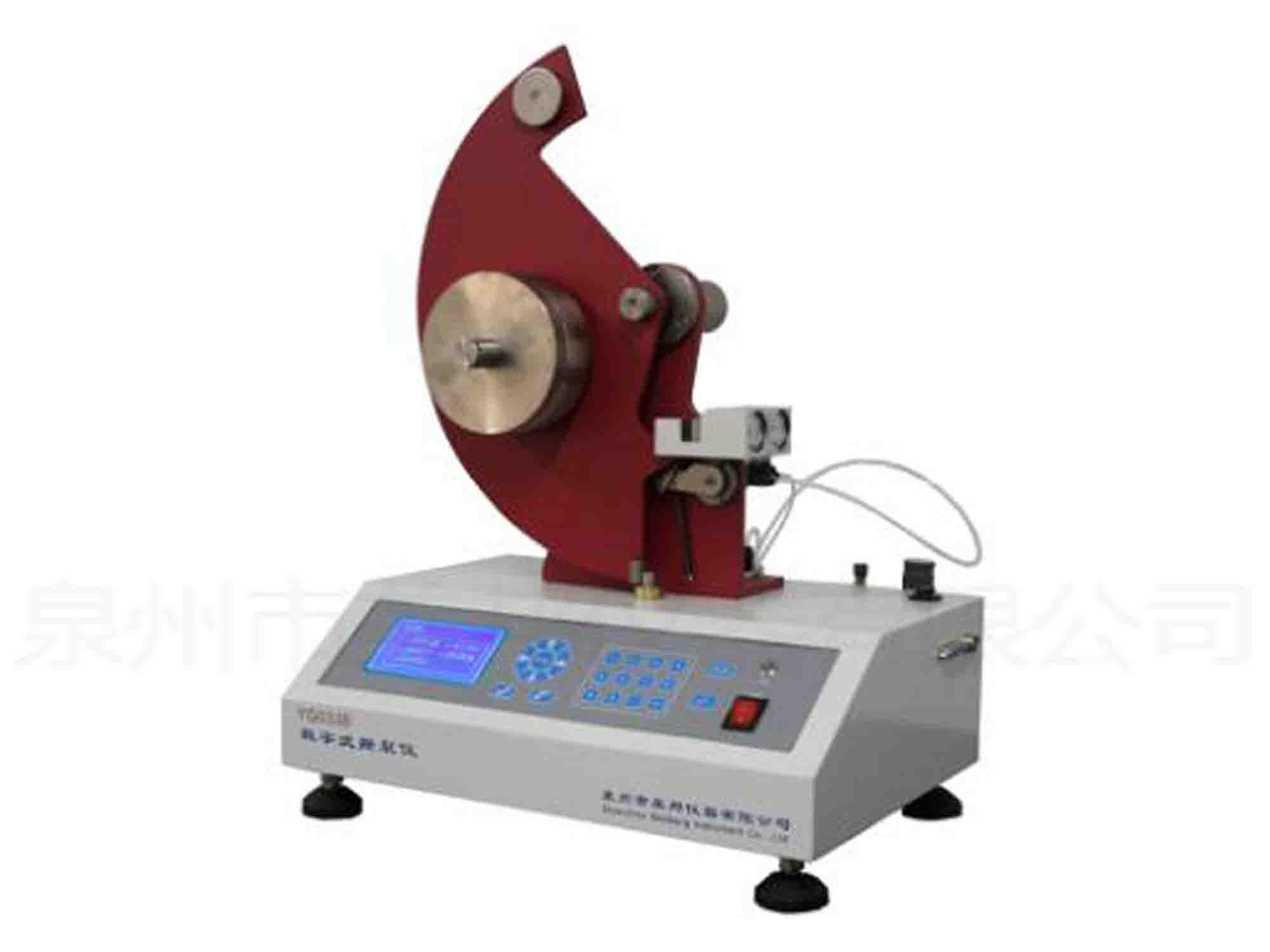

YG033B is a powerful, multi - industry universal instrument，after a wide range of redesigns, the modern appearance and a series of new functions will be better in terms of value, accuracy, safety and flexibility.This product uses the impact pendulum method to determine the tearing strength of fabrics, and it can also be used to determine the tearing strength of paper, plastic cloth, film, electric tape, metal sheet and other materials.
Textiles: B/T 3917.1, the tear property of textile fabric first parts. The determination of tear strength of impact pendulum method is ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17, and P29.
Paper: GB/T 455、APPITA P 400、ASTM D 689、BS 4468、CSA D9、DIN 53128、EN 21974、ISO 1974、JIS P 8116、PAPTAC D9、SCAN P11、TAPPI T414、UNI 6444
Plastic: GB/T 11999、ASTM D1922、ISO 6383-2、JIS K 7128-2、NF T54 141
Non-woven fabric: ASTM D5734、WSP 100.1
1. The advanced calculation method (potential energy method) ensures accurate testing and good repeatability.
2. Micro control system, automatic test, calculation, analysis results, print test report, upload test data.
3. Humanized operation interface in the control system, English, simple and convenient operation, all the keys for function softkey, concise operation panel.
4. All data and statistical results can be freely checked in the host.
5. Test units can be selected and automatically converted between N, GF, cN and cP to meet the requirements of different standards.
6. The pneumatic specimen is clamped and the pendulum is released to ensure that the clamping force is consistent and the operation strength can be reduced.
7. Cut the sample automatically to ensure that the shape of the cut is consistent and the operation strength can be reduced.
×
